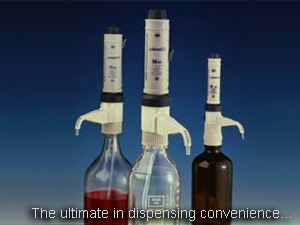

Labmax Bottle Top Dispensers
LabmaxTM Bottle Top Dispensers
- Unique closed circut air purging system
- Reagent "guard valve" for safety shut down
- Exclusive integrated swivel neck
- Patented direct displacement teflon® piston
- Quick and accurate volume adjustment
- Auto - calibrating
- Fully autoclavable
- ISO 9001 certified
|
|
Product Information
|
| The Labmax bottle top dispenser has been developed through extensive testing and input from end users. The result is an easy to use system with a variety of important features. |
| The unique closed circut air purging system allows air and bubbles to be eliminated from the dispenser without loss of valuable reagent. |
| The Reagent "Gaurd Valve" prevents accidental discharge of reagent when the dispenser is not in use. A simple turn of the operations mode selector activates this safety feature. Eliminating the need for discharge tube caps. |
| The exclusive Integrated Swivel Neck allows the discharge tube to be turned 360° for convenient dispensing without affecting the connection to the bottle. |
| The Dispensers aref ully autoclavable to 121°C for sterilization. The Labmax can be disassembled quickly and easily for thorough cleaning. |
| Quick and accurate volume adjustment is easy with the locking rocker switch. The zero point is manufactured into the Labmax; calibration is not necessary, even after disassembly and cleaning. |
| ISO 9001 Certification has been achieved in the design, developement and manufacturing stages of the Labmax. All Labmax dispensers feature a dated mark for compliance with ISO 9001 procedures. |
|
|
Product Specifications
|
| Piston |
Direct displacing, PTFE with PTFE coated viton O-ring |
| Cylinder |
Borosilicate glass with transparent plastic safety coating |
| Housing |
Polypropylene |
| Volume Adjustment |
Locking rocker switch |
| Calibration |
Automatic |
| Accuracy |
± 0.7% |
| Reproductibility |
± 0.1% |
| Autoclavable |
Fully, to 121°C |
| Compatibility |
Excellent - suitable for dispensing most reagents except HF |
| Warranty |
1 year, parts and labor |
| Range (ml) |
0.3 - 2.5µl / 1.0 - 5.0 µl / 2.0 - 10.0µl / 5.0 - 25.0µl / 10.0 - 50.0µl / 20.0 - 100.0µl |
| Increment (ml) |
0.05, 0.10, 0.20, 0.50, 1.00, 2.00 |
| Tolerance (ml) |
0.02, 0.04, 0.08, 0.15. 0.40, 0.80 |
| Thread size |
33mm, 33mm, 33mm, 45mm, 45mm, 45mm |
| Catalog no. |
D5370-2, D5370-5, D5370-10, D5370-25, D5370-50, D5370-100 |
| Supplied with 24, 28, 38 and 45 mm adapters 28, 33 and 38 mm adapters |
|
|
Ordering Information
|
| Catalog Number |
Item Description |
| D5375-002 |
Extended discharge tube, 80cm, for 2.5ml and 10.0ml |
| D5375-012 |
Extended discharge tube, 80cm, for 25.0ml, 50.0ml and 100.0ml |
| D5377 |
Calcium chloride drying tube |
| D5370-2 |
Labmax Dispenser 0.3 - 2.5ml |
| D5370-5 |
Labmax Dispenser 1.0 - 5.0ml |
| D5370-10 |
Labmax Dispenser 2.0 - 10.0ml |
| D5370-25 |
Labmax Dispenser 5.0 - 25.0ml |
| D5370-50 |
Labmax Dispenser 10.0 - 50ml |
| D5370-10-S |
Labmax dispenser, 2.0-10.0ml, Solvent Version |
| D5370-25-S |
Labmax dispenser, 5.0-25.0ml, Solvent Version |
| D5370-50-S |
Labmax dsepenser,10.0 - 50.0ml, Solvent Version |
| D5370-10-HF |
Labmax dsepenser, 2.0-10.0ml, for hydrofloric acid |
| D5370-25-HF |
Labmax dsepenser, 5.0-25.0ml, for hydrofloric acid |
| D5370-100 |
Labmax Dispenser 20.0 - 100.0ml |
|
|
|
|
