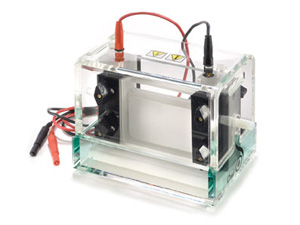

垂直電泳槽 Thermo Scientific Owl P8DS System
Code  NM0260-0010
Classification  電泳相關設備
Size
Order 加入購物車
Print
PRODUCT DETAIL

Thermo Scientific Owl P8DS System
Gel Size: (W x L) 10 x 8-10 cm
Footprint: (W x L x H) 17 x 13 x 14 cm
UBC Running Buffer Volume: 150 ml
LBC Running Buffer Volume: 150 ml
Total Running Buffer Volume: 300 ml
Fast run times and easy operation for excellent results.

Our Owl P8DS System can quickly and easily cast and run 1 or 2 gels in the same device. When used with the available combs, spacers, alumina and glass plates, it is the perfect tool for second dimension protocols of 2-D electrophoresis, SDS and agarose gels, and native PAGE electrophoresis.

The unique agarose plug method makes casting gel simple and quick. Gel assemblies do not have to be moved once set-up. The two individual steps of casting and running in different devices are now combined.

Our Owl P8DS System is manufactured using Owl’s time tested acrylic fabrication technology providing a durable, long lasting system backed by a 3-year warranty. The design allows for a very simple clamping mechanism that makes loading glass cassettes and most manufacturers pre cast gels trouble free.



P8DS-2 Gel Casting Instructions
Casting with Owl's system
1. Load the glass cassettes with the simple clamping mechanism
2. Pour an agarose plug in the specially designed agarose well
3. Cast the acrylamide solution in the cassettes and once solidified, load your samples.
4. Run the gel (s)



P8DS-2 Sample Gel



Comb Options
Catalog
Number		 Comb
Type
 Number
of Teeth
 Thickness
of Teeth
 Width
of Teeth
 EST Well
Volume
MP-10A Standard 10  0.5mm  5.7mm  46µl
MP-10C Standard 10  0.8mm  5.7mm  73µl
MP-10D Standard 10  1.5mm  5.7mm  134µl
MP-12A Standard 12  0.5mm  4.3mm  34µl
MP-12C Standard 12  0.8mm  4.3mm  55µl
MP-12D Standard 12  1.5mm  4.3mm  103µl
MP-15A Standard 15  0.5mm  2.9mm  23µl
MP-20A Standard 20  0.5mm  1.6mm  13µl
MP-6A Standard 6  0.5mm  11.1mm  89µl
MP-6C Standard 6  0.8mm  11.1mm  142µl
MP-6D Standard 6  1.5mm  11.1mm  266µl
MP-8A Standard 8  0.5mm  7.7mm  62µl
MP-8C Standard 8  0.8mm  7.7mm  99µl
MP-8D Standard 8  1.5mm  7.7mm  185µl

Complete System Includes:
 • Upper Buffer Chamber with Internal Cooling Core
  • Lower Buffer Chamber
  • SuperSafe Lid with Attached Power Supply Leads
  • 4 Blank Glass Plates
  • 2 Notched Glass Plates
  • 2 Notched Alumina Plates
  • Spacer Set: 0.8 mm Thick
  • Blocking Plate for Single Gel Operation
  • Spacer Placer
  • 2 Combs: 10 Well, 0.8 mm Thick

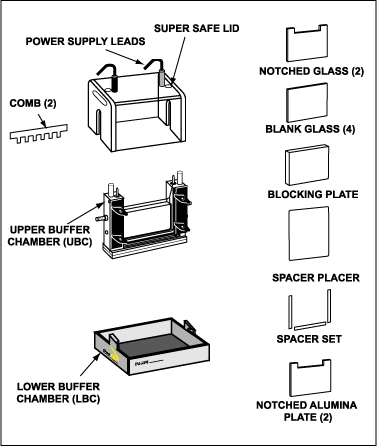

Illustration of Complete System
illustration



Ordering Guide
Item Description Cat. No.
Complete System P8DS-2

Accessories Cat. No.
JGC-4 Gel Casting System
Gel Size: (W x L) 10 x 10 cm
Footprint: (W x L x H) 13 x 13 x 11 cm
Compatible with P8DS		 JGC-4
Frosted Glass, (W x H x L) 10 x 10 x 0.24 cm P7-10FG
Frosted Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10FR
Blank Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10G
Notched Glass, (W x L x H) 10 x 10 x 0.24 cm P7-10R
Notched Alumina, (W x L x H) 10 x 10 x 0.10 cm P7-10RA
Thermo Scientific Owl P7-CST Gradient Gel Caster
Gel Size: (W x L) 10 x 10 cm
Footprint: (W x L x H) 15 x 13 x 13 cm
Compatible with P8DS		 P7-CST
Spacer Set, (W x H) 0.50 x 0.50 cm P7-SA
Spacer Set, (W x H) 0.50 x 0.08 cm P7-SC
Spacer Set, (W x H) 0.50 x 0.15 cm P7-SD
Side Clamps (1 pair.) P8-CL
Upper Buffer Chamber Assembly P8DS-001
Lower Buffer Chamber P8DS-008
SuperSafe Lid with Attached Power Supply Leads P8DS-012
Blocking Plate P8DS-016
Complete System with JGC-4 P8DS-1
P8DS Apparatus Only P8DS-3
Thermo Scientific Owl Power Supply Leads PSL-5
Wing Knob R10446
Replacement Gaskets, White (1 pair.) R12009
Sponge Tips (Pkg. of 10.) ST-10

Combs Cat. No.
Standard MP-10A
Standard MP-10C
Standard MP-10D
Standard MP-12A
Standard MP-12C
Standard MP-12D
Standard MP-15A
Standard MP-20A
Standard MP-6A
Standard MP-6C
Standard MP-6D
Standard MP-8A
Standard MP-8C
Standard MP-8D
